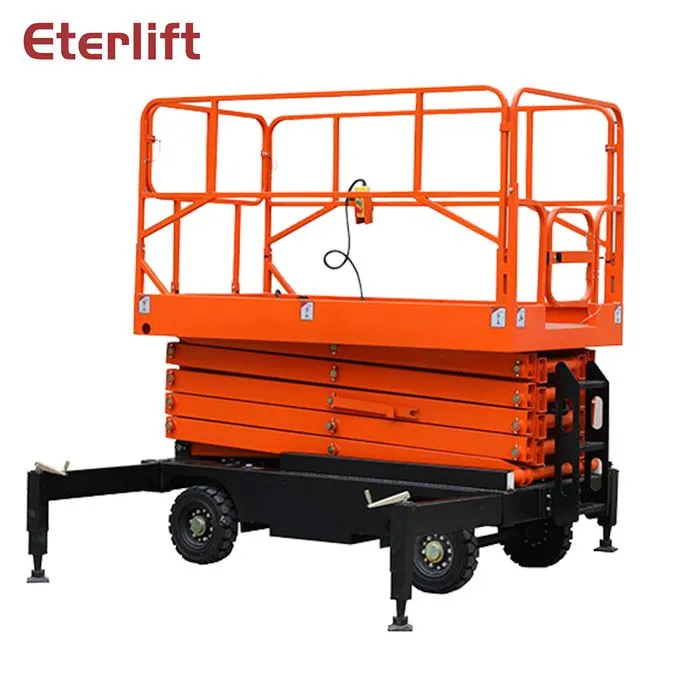

Hluav taws xob scissor nqa tseem hu ua hluav taws xob nqa scissor nqa lossis semi hluav taws xob scissor nqa .Peb tsim cov scissor nqa los ntawm 3m-20m, qhov siab sib txawv lawv cov nqi sib txawv, raws li kev muaj peev xwm, tus qauv hom scissor nqa loading ntawm 300kg-2000kg, tuaj yeem sib txawv hom kev ua haujlwm ib puag ncig.
Raws li rau hluav taws xob scissor nqa, feem ntau nws nqa los ntawm AC zog thiab tsiv los ntawm manually, tsiv los ntawm roj teeb zog yog xaiv tau.Koj tuaj yeem xaiv raws li koj qhov yuav tsum tau, raws li rau voltage, peb lees txais customization thoob plaws ntiaj teb.Pls qhia rau kuv koj cov kev xav tau, peb tuaj yeem muab cov khoom lag luam tsim nyog rau koj.
Qauv | Max. platform Qhov siab (m) | Thauj khoom muaj peev xwm | Cov Ntawv Loj （mm) | Zuag qhia tag nrho (mm) | NW (kg) |
500kg Ntsaws muaj peev xwm | |||||
ESL0504 | 4 | 500 | 2100*830 | 2250*950*1100 | 800 |
ESL0506 | 6 | 500 | 2100*830 | 2250*950*1200 | 880 |
ESL0507 | 7 | 500 | 2100*830 | 2250*950*1280 | 970 |
ESL0508 | 8 | 500 | 2100*930 | 2250*1060*1380 | 1050 |
ESL0509 | 9 | 500 | 2100*930 | 2250*1060*1500 | 1165 |
ESL0510 | 10 | 500 | 2100*1230 | 2250*1350*1530 | 1360 |
ESL0511 | 11 | 500 | 2100*1230 | 2250*1350*1650 | 1400 |
ESL0512 | 12 | 500 | 2550*1530 | 2796*1670*1750 | 2260 |
ESL0514 | 14 | 500 | 2812*1530 | 3067*1730*1810 | 2400 |
ESL0516 | 16 | 500 | 2812*1600 | 3067*1800*2080 | 3500 |
ESL0518 | 18 | 500 | 3070*1600 | 3321*1810*2080 | 3900 |
1000kg Load muaj peev xwm | |||||
ESL1004 | 4 | 1000 | 2100*1200 | 2250*1350*1180 | 1250 |
ESL1006 | 6 | 1000 | 2100*1200 | 2200*1350*1300 | 1400 |
ESL1008 | 8 | 1000 | 2100*1200 | 2200*1350*1420 | 1585 |
ESL1010 | 10 | 1000 | 2100*1200 | 2200*1350*1530 | 1700 |
ESL1012 | 12 | 1000 | 2550*1530 | 2796*1670*1750 | 2560 |
ESL1014 | 14 | 1000 | 2812*1530 | 3067*1750*1810 | 2765 |
1500kg Load muaj peev xwm | |||||
ESL1506 | 6 | 1500 | 2100*1530 | 2250*1750*1530 | 1780 |
ESL1508 | 8 | 1500 | 2100*1530 | 2250*1750*1690 | 2070 |
ESL1510 | 10 | 1500 | 2100*1530 | 2250*1750*1850 | 2250 |
ESL1512 | 12 | 1500 | 2550*1530 | 2250*1762*1850 | 2900 |
ESL1514 | 14 | 1500 | 2816*1600 | 3045*1852*1960 | 3400 |
2000kg Ntsaws muaj peev xwm | |||||
ESL2006 | 6 | 2000 | 2100*1530 | 2250*1750*1530 | 1780 |
ESL2008 | 8 | 2000 | 2100*1530 | 2250*1750*1690 | 2070 |
ESL2010 | 10 | 2000 | 2100*1530 | 2250*1750*1850 | 2250 |
ESL2012 | 12 | 2000 | 2550*1600 | 2796*1852*1954 | 3200 |
ESL2014 | 14 | 2000 | 2816*1600 | 3067*1852*2230 | 3900 |
Cim npe nrov: hluav taws xob scissor nqa, Tuam Tshoj, tuam ntxhab, cov chaw muag khoom, kho kom haum
