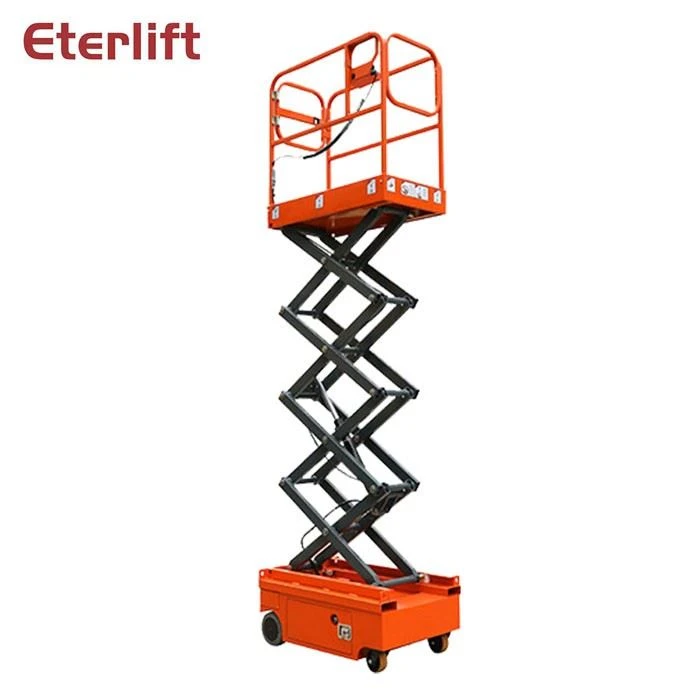

Min tus kheej propelled scissor nqa nws qhov siab nqa ntawm 3m-4m, thauj khoom muaj peev xwm yog 300kg, nws nto moo rau portable thiab qhov loj me me, haum rau kev siv hauv tsev. tsiv, nws heev tshwm sim.
1.Qhov me me: platform loj yog 1170 × 600mm
2. Load muaj peev xwm: 300kg
3. Qhov siab tshaj plaws ua haujlwm siab tuaj yeem ncav cuag li 5m-6m
Qauv | ESL03 | ESL39 | |
Thauj khoom muaj peev xwm | kg | 300 | 300 |
Max.working qhov siab | hli | 5000 | 5900 |
Max qhov siab platform | hli | 3000 | 3900 |
Zuag qhia tag nrho (LXWXH) | hli | 1180X760X1830 | 1180X760X1930 |
Qhov loj me me | hli | 1170x600 | |
Yam tsawg kawg nkaus kev tshem tawm hauv av | hli | 60 | |
Lub laub | hli | 990 | |
Yam tsawg kawg nkaus tig vojvoog | hli | 1200 | |
Lub cev muaj zog | v / kw | 2x24/0.4 | |
Lifting lub cev muaj zog | v / kw | 24/0.8 | |
Kev siv lub tshuab khiav nrawm (platform qis dua) | km / h | 4 | |
Kev siv lub tshuab khiav ceev (platform nqa) | km / h | 0.8 | |
Sawv / poob qis dua | sec | 20/30 | |
Roj teeb hluav taws xob | v / Ah | 2x12/80 | |
Them nyiaj | v/A | 24/15 | |
Muaj peev xwm ntau qhov nce siab | % | 10-15° | |
Qhov siab tshaj plaws ua haujlwm tau kaum sab xis | / | 2° | |
Tsav log loj | hli | Φ230x80 | |
Log log | hauv | 6 | |
Lub cev hnyav | kg | 490 | 600 |
1.Yog li cas xaiv nqa qhov siab?
Feem ntau nqa qhov siab nqa ntxiv rau 2m qhov sib npaug ntawm qhov siab ua haujlwm, piv txwv li, yog tias koj yuav 3m tshuab nqa scissor nqa, nws qhov siab ua haujlwm tuaj yeem mus txog 5m.
2. Lub sijhawm them roj teeb ntau npaum li cas?
Them rau 4 teev tuaj yeem ua haujlwm tsis tu ncua rau 8 teev.
3.How txog qhov kev lees paub?
Peb cov khoom txhua qhov tseem ceeb siv cov hom nto moo, tag nrho lub tshuab tsis ua hauj lwm tus nqi yog tsawg heev yog tias koj tuaj yeem ua txij nkawm txhua hnub nquag
4.Yuav ua li cas xaiv lub tshuab nqa tshuab?
Raws li kev nqa lub tshuab, peb muaj hom txheem, koj tuaj yeem xaiv nws los ntawm peb cov ntaub ntawv, yog tias koj tsis pom lub hom haum, peb tuaj yeem lees txais kev cai raws li koj qhov yuav tsum tau ua.
Cim npe nrov: mini tus kheej xa khoom nqa scissor nqa, Tuam Tshoj, tuam ntxhab, cov chaw muag khoom, kho kom haum
