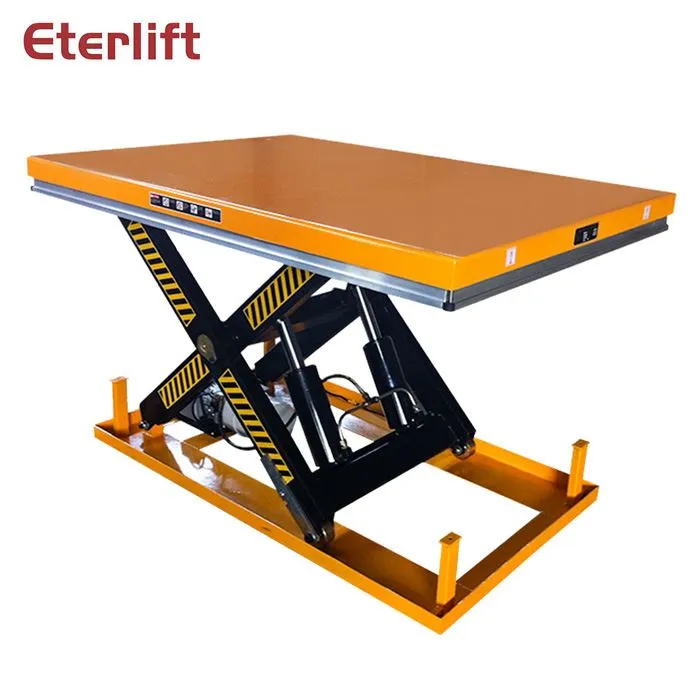

Lub tshuab nqa nqa hluav taws xob tuaj yeem siv rau cov kab ntau lawm ua haujlwm thiab thauj khoom, nce thiab nqis cov khoom muag, kom cov khoom loj tuaj txog ntawm qhov siab qhov sib txawv.hydraulic nqa cov lus yog ib yam ntawm cov nqa khoom nqa nrog kev nqa zoo stability.Peb muaj peev xwm siv lub vaj huam sib luag kov kom tswj tau cov nce, nce thiab nqis, nws xis nyob heev.
Qauv | Chav Nyob | SST1001 | SST1002 | SST1003 |
Thauj khoom muaj peev xwm | kg | 1000 | 1000 | 1000 |
Min min qhov siab | hli | 205 | 205 | 240 |
Qhov chaw siab kawg | hli | 990 | 990 | 1300 |
Nqa sijhawm | s | 20-25 | 20-25 | 30-35 |
Kev tsuj roj | v / hz | 380/50 | 380/50 | 380/50 |
Qhov loj me me | hli | 1300X820 | 1600X1000 | 1700X850 |
Qhov loj me | hli | 1240X640 | 1240X640 | 1580X640 |
Packing loj | hli | 1310X820X210 | 1610X1010X210 | 1710X850X210 |
Lub cev hnyav | kg | 180 | 200 | 220 |
Qauv | Chav Nyob | SST2001 | SST2002 | SST4001 | SST4002 |
Thauj khoom muaj peev xwm | kg | 2000 | 2000 | 4000 | 4000 |
Qhov loj me me | hli | 1300X850 | 1600X1000 | 1700X1200 | 2000X1200 |
Max qhov siab | hli | 1000 | 1000 | 1050 | 1050 |
Min qhov siab | hli | 230 | 230 | 250 | 250 |
Nqa sijhawm | s | 20-25 | 20-25 | 30-40 | 30-40 |
Kev tsuj roj | v / hz | 380/50 | 380/50 | 380/50 | 380/50 |
Qhov loj me | hli | 1300X640 | 1220X785 | 1220X785 | 1600X785 |
Packing loj | hli | 1310X860X240 | 1610X1010X240 | 1710X1210X250 | 2010X1210X250 |
Lub cev hnyav | kg | 260 | 290 | 410 | 450 |
1. Mekas saum cov lus: pob, chais, tiltable thiab rotatable cov lus saum
2. Los tiv thaiv nplua qauv phaj, steel phaj, muaj peev xwm tiv thaiv tau
3. Nruab nrog cov khoom siv thaum muaj xwm ceev thaum lub zog tsis ua haujlwm
4. High-lub zog manganese steel scissor sab caj npab, siab zog, siab hardness, tsis yooj yim rau deform
5. Tus pin yog ua los ntawm 45 # carbon cov hlau, uas muaj zoo hnav tsis kam
6. Kev nyab xeeb hydraulic system nrog kev tiv thaiv tawm tsam ntau dhau (xaiv tau)
7. Kev hloov hluav taws xob thiab ntu txuas ntxiv txais yuav Fabkis Schneider
8. Kev ua haujlwm siab zoo-Nyij Pooj NOK
9. tuaj yeem hloov kho lub xov tooj ntawm tes, tuaj yeem nruab nrog hluav taws xob tawg-pov thawj hluav taws xob (xaiv tau)
10. Kev teeb tsa tsis siv neeg kev tuav hydraulic
