| Qauv | PEB 075 | CPD 10 | CPD 12 | CPD 16 | CPD18 | CPD 20 | CPD 25 | CPD 30 | CPD35 | ||
| Hom fais fab | Roj teeb | Roj teeb | Roj teeb | Roj teeb | Roj teeb | Roj teeb | Roj teeb | Roj teeb | Roj teeb | ||
| Rated load | KG | 750 | 1000 | 1200 | 1600 | 1800 | 2000 | 2500 | 3000 | 3500 | |
| Load center nrug | mm | 400 | 400 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | |
| Hom tsav tsheb | Rooj | Rooj | Rooj | Rooj | Rooj | Rooj | Rooj | Rooj | Rooj | ||
| Ntev | Nrog rab rawg L1 | mm | 2592 | 2592 | 2672 | 3040 | 3190 | 3550 | 3550 | 3850 | 3850 |
| Tsis muaj rab rawg L2 | 1652 | 1652 | 1732 | 1970 | 2120 | 2480 | 2480 | 2780 | 2780 | ||
| Tag nrho dav B | 940 | 940 | 940 | 1010 | 1010 | 1180 | 1180 | 1270 | 1270 | ||
| Qhov siab | Qhov siab tsis muaj lifting ncej H1 | 1680 | 2040 | 2040 | 1960 | 1960 | 1995 | 1995 | 2050 | 2050 | |
| Sab saum toj ncej qhov siab H2 | 1950 | 1950 | 1950 | 2070 | 2070 | 2210 | 2210 | 2205 | 2205 | ||
| Max Qhov siab ua haujlwm H3 | 3320 | 3820 | 3820 | 4050 | 4050 | 4100 | 4100 | 4055 | 4055 | ||
| Qhov deb ntawm lub rooj zaum rau saum lub teeb L3 | 970 | 970 | 970 | 1000 | 1000 | 1070 | 1070 | 972 | 972 | ||
| Log puag L4 | 1020 | 1020 | 1020 | 1260 | 1260 | 1650 | 1650 | 1830 | 1830 | ||
| Pem hauv ntej overhang Y | 327 | 327 | 327 | 350 | 350 | 410 | 410 | 475 | 475 | ||
| Tom ntej: L5 | 313 | 313 | 313 | 365 | 365 | 420 | 420 | 490 | 490 | ||
| Pem hauv ntej log tread R | 840 | 840 | 840 | 1010 | 1010 | 1000 | 1000 | 996 | 996 | ||
| Rov qab log tread P | 741 | 741 | 741 | 830 | 830 | 945 | 945 | 968 | 968 | ||
| Min Floor clearance F | 90 | 90 | 90 | 130 | 130 | 110 | 110 | 115 | 115 | ||
| Max nqa qhov siab H | 2500 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | ||
| Dawb nqa qhov siab H4 | 0 | 0 | 0 | 40 | 40 | 150 | 150 | 145 | 145 | ||
| Fork hloov S | 820/190 | 820/190 | 820/190 | 1040/200 | 1040/200 | 1040/200 | 1040/200 | 250~1100 | 250~1100 | ||
| Min Turning radius (sab nraum) WA | 1800 | 1800 | 1800 | 2100 | 2100 | 2285 | 2285 | 2500 | 2500 | ||
| Min Txoj cai kaum aisle dav RA | 2000 | 2000 | 2000 | 3850 | 3850 | 3995 | 3995 | 4275 | 4275 | ||
| Ncej kaum sab xis (pem hauv ntej / nraub qaum) a / | (degree) | 6 degree / 12 degree | 6 degree / 12 degree | 6 degree / 12 degree | 6/12 | 6/12 | 6/10 | 6/10 | 5/10 | 5/10 | |
| Max nqa ceev yam tsis muaj khoom | mm/s | 300 | 250 | 250 | 300 | 300 | 280 | 280 | 350 | 350 | |
| Max nqa ceev nrog tag nrho cov khoom | 220 | 220 | 220 | 260 | 260 | 260 | 260 | 280 | 280 | ||
| Max ceev yam tsis muaj khoom | Km/h | 12 | 12 | 12 | 14 | 14 | 14 | 14 | 15 | 15 | |
| Max ceev nrog tag nrho cov khoom | 11 | 11 | 11 | 13 | 13 | 13 | 13 | 14 | 14 | ||
| Max nce toj kaum | ％ | Tsawg dua los yog sib npaug li 10 | Tsawg dua los yog sib npaug li 10 | Tsawg dua los yog sib npaug li 10 | 15 | 15 | 15 | 15 | 15 | 15 | |
| tus kheej hnyav | Kg | 1520 | 1720 | 1800 | 2560 | 2720 | 3400 | 3650 | 4000 | 4150 | |
| Tsav Tsheb | 2x/2 | 2x/2 | 2x/2 | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 | ||
| Tyre qauv | Khoom log | Khoom log | Khoom log | Khoom log | Khoom log | pneumatic log tsheb | pneumatic log tsheb | pneumatic log tsheb | pneumatic log tsheb | ||
| Lub log pem hauv ntej | 15x4 1/2-8 | 15x4 1/2-8 | 15x4 1/2-8 | 18×7-10 | 18×7-10 | 6.50-10 | 6.50-10 | 28x9-15 | 28x9-15 | ||
| Tsheb Tyre | 3.50-5 | 3.50-5 | 3.50-5 | 16×6-8 | 16×6-8 | 18×7-8 | 18×7-8 | 18x7-8 | 18x7-8 | ||
| Tes Nres | Hydraulic Pedal | Hydraulic Pedal | Hydraulic Pedal | Hydraulic Pedal | Hydraulic Pedal | Hydraulic Pedal | Hydraulic Pedal | Hydraulic Pedal | Hydraulic Pedal | ||
| Nres hom | M- Tes | M- Tes | M- Tes | M- Tes | M- Tes | M- Tes | M- Tes | M- Tes | M- Tes | ||
| lead aicd Roj teeb Volt / muaj peev xwm | V/Ah | 48V/140 | 48V/160 | 48V/160 | 48V/230 | 48V/230 | 48V/300 | 48V/300 | 80/300 | 80/300 | |
| Lithium roj teeb Volt / muaj peev xwm | V/Ah | 48V/105 | 48V/105 | 48V/105 | 48V/150 | 48V/150 | 48V/206 | 48V/206 | 80/206 | 80/206 | |
| Tsav lub cev muaj zog | Kw | 4 | 4 | 4 | 5 | 5 | 7.5 | 7.5 | 10 | 10 | |
| twj zog | 4 | 4 | 4 | 6 | 6 | 10 | 10 | 12 | 12 | ||

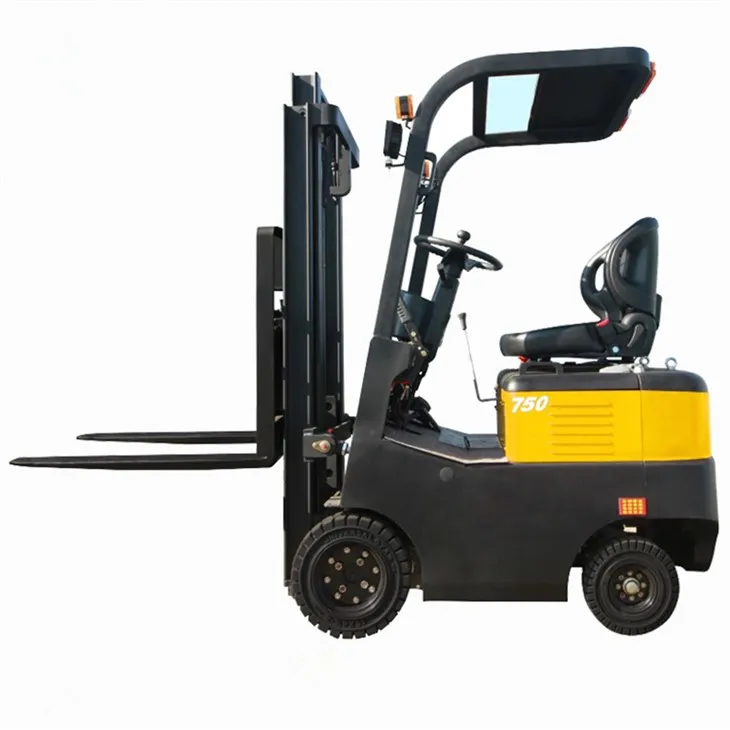

Qhia peb qhov tseeb ntxiv rau cov khoom siv hauv tsev rau khoom, hluav taws xob forklift. Lub tshuab tshiab no yog tsim los muab kev txhim khu kev qha, ua haujlwm tau zoo thiab huv si ntawm cov khoom lossis cov khoom lag luam hauv ntau qhov chaw tsim khoom.
Tsim los ntawm lub tshuab hluav taws xob, lub forklift boasts ib qho kev ua haujlwm ntsiag to, ua rau nws zoo meej rau kev siv sab hauv tsev uas muaj suab nrov muaj kev txhawj xeeb. Nws lub zero-emission feature kuj ua kom ntseeg tau tias ib puag ncig tsis cuam tshuam rau txhua txoj hauv kev. Lub tshuab hluav taws xob forklift muaj kev saib xyuas qis, txuag koj ob lub sijhawm thiab nyiaj txiag rau lub sijhawm ntev.
Lub forklift no muaj cov thev naus laus zis siab heev, xws li rov tsim dua tshiab, uas txuag lub zog thiab txuas ntxiv roj teeb lub neej. Lub ergonomic thiab intuitive tswj muab precision tuav, cia kom yooj yim maneuverability.
Nrog lub peev xwm nqa txog li 6, 000 phaus, lub forklift hluav taws xob no paub tseeb tias ua tau raws li koj cov khoom siv xav tau. Lub versatility ntawm lub tshuab no ua rau nws zoo tagnrho rau ntau yam kev lag luam, suav nrog kev tsim khoom, chaw muag khoom, thiab kev xa khoom.
Ntawm Qingdao Eterlift Machinery Co., Ltd., peb muab ntau yam kev pab cuam tom qab muag los xyuas kom meej tias koj lub forklift fais fab muaj kev tswj xyuas zoo thoob plaws hauv nws lub neej. Peb pab neeg ntawm cov kws tshaj lij thiab cov neeg sawv cev pabcuam muaj nyob rau txhua lub sijhawm los teb koj cov lus nug lossis muab kev txhawb nqa.
Txhim kho koj cov khoom lag luam niaj hnub no nrog peb lub forklift tshiab. Tiv tauj peb kom paub ntau ntxiv txog peb cov khoom thiab nws yuav pab tau koj li cas.
